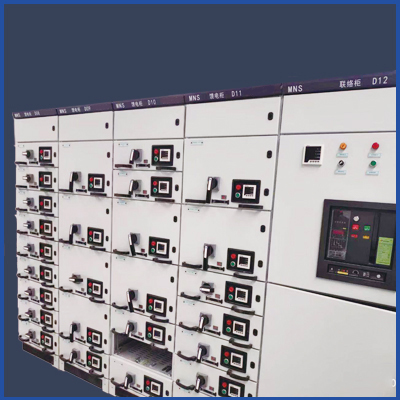

MNS低壓抽屜柜產品的特點從哪里了解？針對這個問題，下面小編為您整理了相關內容。
Where do you know the characteristics of MNS low-voltage drawer cabinet products? To solve this problem, the following sections have sorted out relevant contents for you.
結構緊湊，在較小的空間內可容納較多的功能單元，節省用戶投資。
Compact structure, can accommodate more functional units in a smaller space, saving user investment.
MNS低壓抽屜柜柜體能背靠背地排列，同一柜體可自由組合成固定式和抽出式二種型式。
The MNS low-voltage drawer cabinet can be arranged back-to-back, and the same cabinet can be freely combined into two types: fixed type and drawout type.
低壓抽屜柜結構通用性強，組裝靈活，可按工作和環境的不同要求，設計出相應的防護等級。
Low voltage drawer cabinet has strong versatility in structure and flexible assembly, and corresponding protection grade can be designed according to different requirements of work and environment.
全部選用標準模塊，系列標準化，方便工程設計人員設計選用。
All standard modules are selected, and the series are standardized, which is convenient for engineering designers to design and select.
設計獨特的機械鎖定機構，操作靈活方便，勿需特殊復雜工具。
Unique mechanical locking mechanism, flexible and convenient operation, no need for special complex tools.
大量采用高強度阻燃型工程塑料組件，操作人員人身有保障。
A large number of high-strength flame-retardant engineering plastic components are used to ensure the personal safety of operators.
根據電纜出線方式的不同，可選擇電纜側出線或后出線兩種方案。
According to the different cable outlet modes, two schemes can be selected: cable side outlet or rear outlet.
MNS低壓抽屜柜技術性能高，主要參數達到當代實力技術水平。
MNS low-voltage drawer cabinet has high technical performance and its main parameters have reached the technical level of contemporary strength.
垂直母線室（內置L型銅排）為全阻燃型背式功能板組裝封閉通道，有效防止事故外延，確保。
The vertical busbar chamber (built-in L-type copper bar) is a closed channel assembled with full flame-retardant back type function board, which can effectively prevent accident extension and ensure safety.
單元抽屜為200模數，小抽出式功能單元可設計成1/4E，單臺多可容納36只1/4E抽屜
The unit drawer is 200 modules, the small withdrawable functional unit can be designed as 1/4E, and a single unit can accommodate 36 1/4E drawers
MNS低壓抽屜柜抽屜具有四個位置（連接、試驗、隔離、抽出）及顯示外加鎖定功能。
MNS low-voltage drawer cabinet has four positions (connection, test, isolation, extraction) and display plus locking function.
新型端板，45°斜面設計，立體感強，外形美觀，安裝拆卸方便。
New end plate, 45 ° inclined plane design, strong three-dimensional sense, beautiful appearance, easy installation and disassembly.
The features of MNS low-voltage drawer cabinet products have been explained. If you have any needs, you can contact us at any time http://www.n13b.com ！
